Pre/Post-processor
This pre/post-processor provides a wide variety of functions and ease-of-use, from model building to evaluation, and high-precision mesh generation for large-scale analyses, enabling automated operations.
Pre-processor
ADVENTURECluster, Builder, is a pre-processor for large assemblies.
Builder can automatically generate high quality assembly meshes and create a variety of analytical
models, including contacts.
Main Features
- Importing various CAD data
- High quality mesh generation
- Extruded mesh generation
- Multi-core support
- Fast contact search
- Mapping functions for various physical values, such as temperature/pressure/fiber orientation
Post-processor
ADVENTURECluster, Visual, is a post-processor for large assemblies.
Our original algorithm enables high-speed drawing performance. Assembly models with more than 30 million
nodes and more than 1,000 parts could be visualized easily and interactively from overview to
close-up.

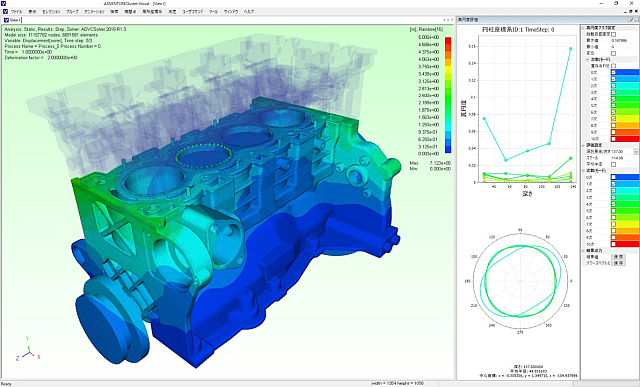

The following is an example for manipulating an assembly model with 11 million nodal points.
Main Features
- Surface contour, surface vector, cross-sectional contour, deformation display
- Animation display
- Graph display
- Arithmetic function
- Interpolation point
- Roundness evaluation function
Operating environment
For more information about the operating environment, please refer to this page.
