Case Study

Wheel

Topology Optimization

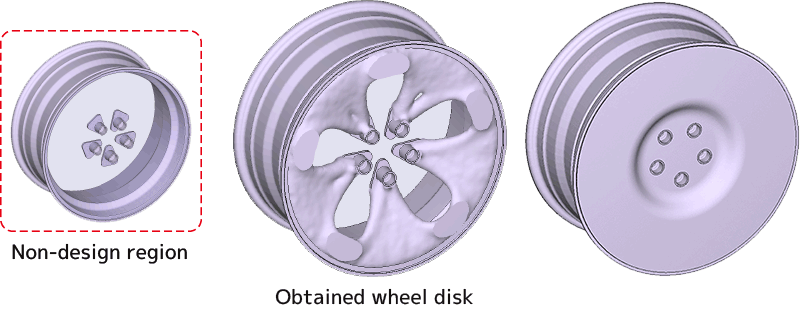

Objective：Design a wheel disk that satisfies the design requirements

• Issues
  • Want to obtain lighter shape.
  • But don't want to change the fastening position with the assembly parts.
• Solutions
  • Set lug holes and rim part in wheel to be the non-design region,
    and allow only the disk part to be the design region.
• Results
  • Achieve rapid design wheel disk that satisfies design requirements.
