Case Study

Giga Press Machine

Large Scale Assembly Analysis

Objective：Preliminary evaluation of displacement and stress of the
die and press machine in the molding process for the introduction of giga press.

• Issues
  • Giga press machine has greater die clamping force and larger scale than conventional die casting machines.
    • Giga press may present different problems than conventional die casting.
    • Evaluation of the casting process by giga press is required before introduction.
• Solutions

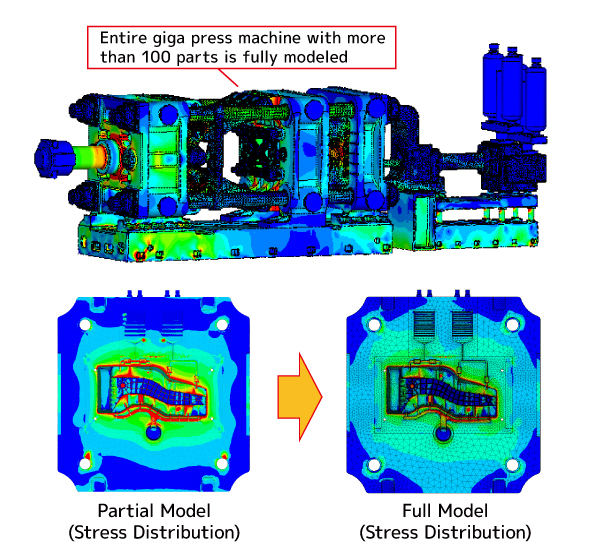

  • Achieve the full model analysis of the entire giga press machine by ADVENTURECluster.
  • In addition, the fast solver enables analysis of large models in practical computation time.
• Results
  • Full model analysis of the entire giga press machine enables higher precision evaluation of the casting process.
